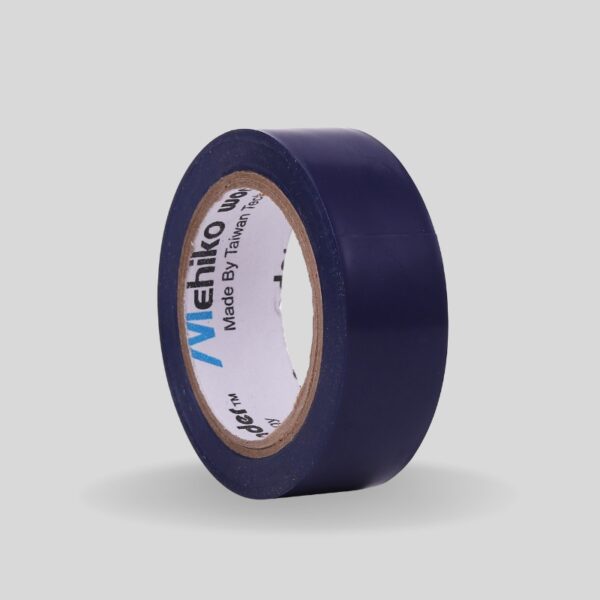

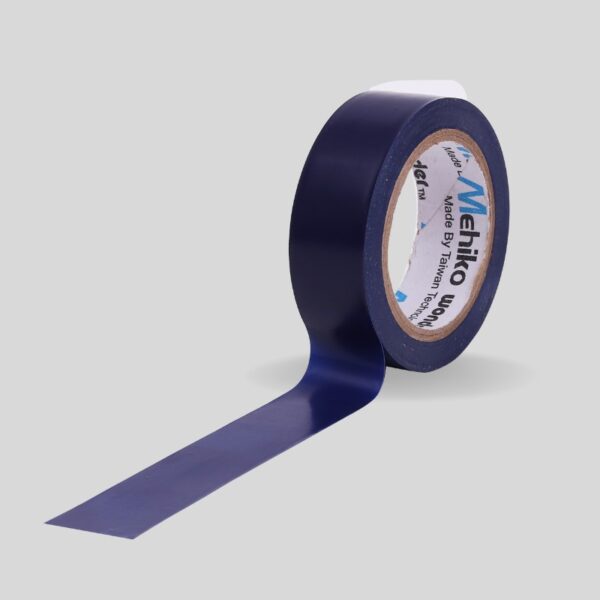

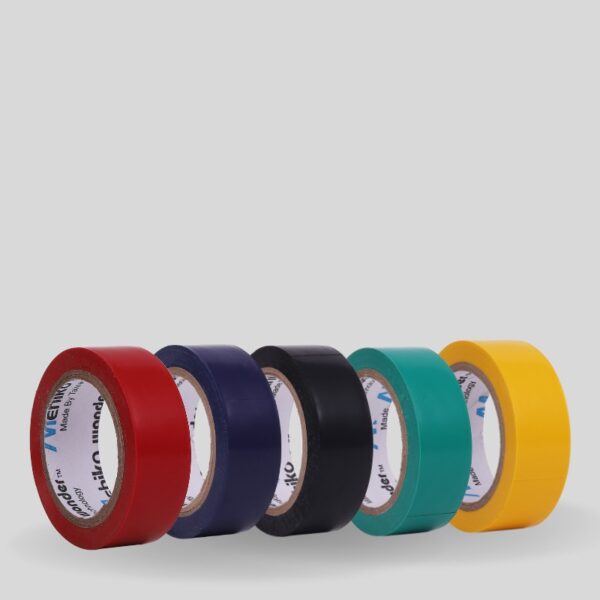

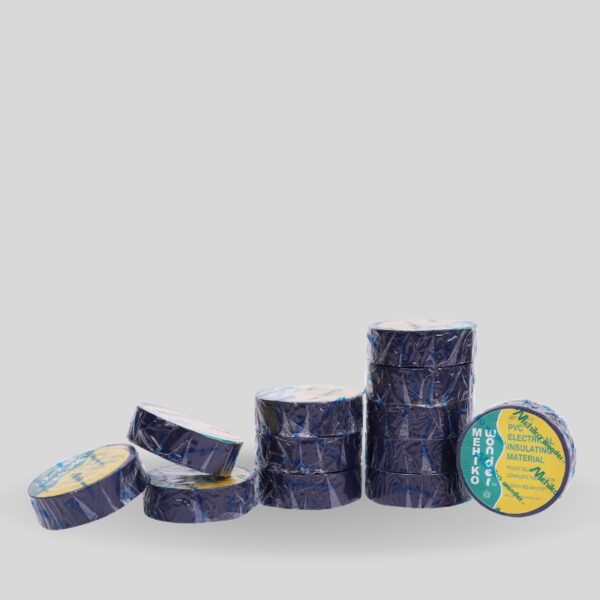

Mehiko Wonder PVC Electrical Insulation Tape Manufacturer India

Mehiko Wonder PVC Electrical Insulation Tape is manufactured as per IS: 7809 Part 3/Sec-1. It uses the best available FR grade film and a unique proprietary formulation of rubber-based adhesive.

The product is manufactured by an ISO 9001:2008 accredited plant.

The quality policy states: We, at Glutape India Pvt. Ltd., will strive to continually improve the quality of our products and services to satisfy the needs of our customers. We will adhere to the work schedule on time and continually improve the effectiveness of the quality management system.

For more info

Additional Information

Application
Primarily meant for use as insulation tape in electrical wiring, it is also used in jointing kit of telecommunication cable, automotive cable hamess & many other industrial like tube / pipe etc.

Features
• Automotive Cable repairing & Harnessing
• Embossed Film
• Insulation of Cable Lugs in Meter Panels
• Insulation of Electrical Wires
• Telecom Towers Cable Jointing
• Wire Winding for Submersibles Pumps
• Retardant tape- extinguishes the fire before its is propagated.
• High stability and excellent ageing properties
• Moisture and corrosion resistant
• Resistant to Acid, Alkalis,Oil, Grease & Gasoline
• Non-migratory adhesive – Not Transferred from one face to another
• Withstands up to 6500 v AC & provides long lasting insulation thus saving from short circuits
• Indoor & Outdoor applications – Weather resistant
• High adhesion strength – Specially formulated in house made adhesive does not dry or allow the tape to be loosened
• Made out of soft and stretchable PVC film, ideal to be used on any surface irrespective of shapes
• Soft, Stretchy, easy unwinding, good adhesive to adhere
• Excellent mechanical support at high temp. (Up to 80 C)
• Uniform lead free PVC film thickness tape width & assured length

Specification
• THICKNESS
0.125+0.025 mm
• ADHESION TO STEEL
1.6 N/10 mm width (min)
• ADHESION TO BACKING
1.3 N/10 mm width (min)
• TENSILE STRENGTH
150 N/10 mm width per mm thick (min)
• ELECTRIC STRENGTH at RT
40 KV/mm thickness (min)
• ELECTRIC STRENGTH after humid condition
35 KV/ mm thickness (min)
• FLAMMABILITY
Self Extinguishing
• INSULATION RESISTANCE
1 x 10 Ohms /25 mm width (min)
